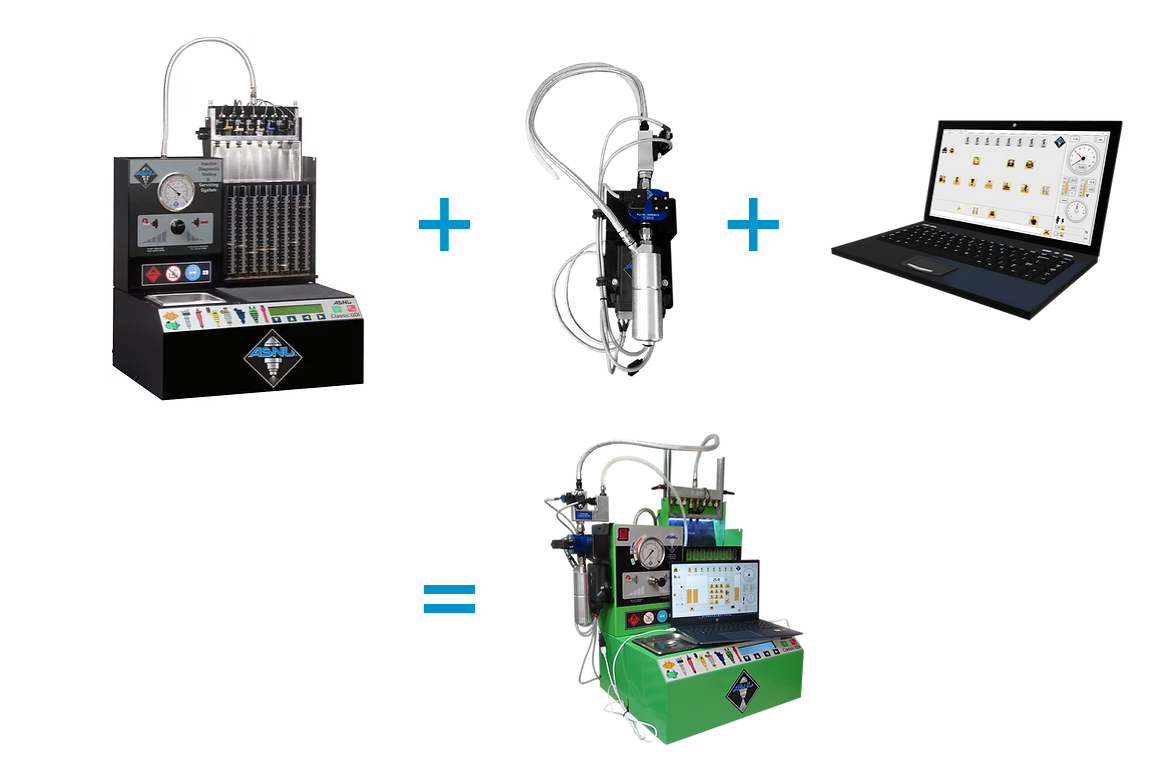

ASNU Digital Flow Kit

* Available as an upgrade to work with any existing ASNU Classic GDI Machine`(no need for new purchase)
* User defined injector RPM, Duty & Pulse Width
* User defined Flush and Leak test duration
* 8 Individual Injector Select Controls
* Worldwide user interface with icon control
* Save results to file for future reference
* Print test reports for customers (will require external printer)

* Mount a Windows Tablet on the machine and use the touchscreen
* Or place a Windows PC next to the machine and use a mouse/keypad or touchscreen (if fitted)

* No need to drain the flow tubes
* Faster Testing - typically measures the flow of 8 injectors in 30 secs
* Eliminates errors in reading the tube levels
* Eliminates errors from fluid remaining in the tubes
* Measure flows up to 4000cc/min @ 3 bar on ASNU flowrite as standard (up to 8000cc/min as an option)
* Option for injector deadtime measurement
* Option for Injector Short Pulse Adder & Short Pulse Multiplier data generation

* High accuracy digital pressure measurement
* BAR or PSI display
* Automatically controls the fuel pressure regardless of the injector flow
* No need to set the pressure with the injector firing in the spray position then moving to the flow tube position - saving time!

* Target flow options (use the average flow from the set of injectors under test or a specific flow (e.g. from an injector data sheet)
* Different colours to show injectors out of limits

* Display in Deg C or Deg F
* Determine the effect of temperature on the injector flow

* Convert from cc/min to lbs/hr & vice versa
* Convert between Flowrite & Gasoline

* Flow vs Pressure Sweep
* Flow vs Pressure vs Voltage

* Check for injector coil faults
* Different colours for injectors out of limits
* Target inductance options (use the average inductance from the set of injectors under test or from an injector data sheet

* Record injector part numbers/serial numbers
* Record vehicle information
* Record customer details
